Capacitance Level Switch
  Capacitance Level Switch
Capacitance Level Switches series CS rely on electrical capacitance theory (the ability of a medium to store electrical energy). When an electrical circuit has two separated conductive plates, the space between the plates acts as a capacitor and stores the electrical energy. Mediums have differing conductivity and dielectric constants which affects their energy storage capability. When the switch comes into contact with the medium, it can detect a change in the surroundings.
FEATURES

Suitable for sticky materials
Suitable for corrosive environment.
Suitable for materials with high or low conductivity
As Capacitance Level Switch has no moving parts inside the device
Easy to install

SPECIFICATIONS

Power Supply: Standard : 220VAC/110VAC; 4VAC/24VDC
Contact Capacity：250VAC/10A, DC30V/10A, SPDT
Power：4.5 VA
Temperature: -25℃~70℃
Delay: 0-10S adjustable
Protection Grade：IP65
Medium Temperature: Common temperature type: -25℃-80℃; High temperature type: max 200℃; Max temperature type: max 1000℃

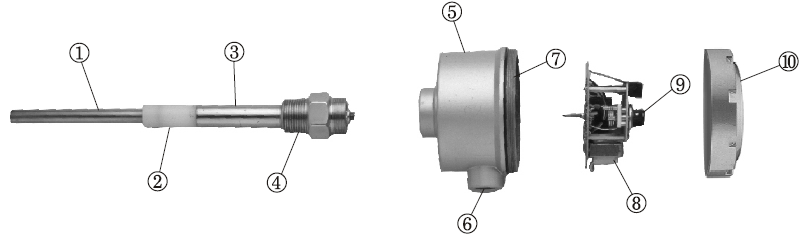

CONSTRUCTION


1. Probe : SUS304 or SUS316
2. Insulation : UPE or PTFE
3. Grounding Sleeve : SUS304 or SUS316
4. Connection : SUS304 or SUS316 (1"PT default)
5. Housing : Aluminum paint
6. Conduit opening : G3/4"
7. Circuit board
8. Cover：Aluminum paint

APPLICATIONS
  • Liquid: various solvents, fuels, water, pure water, etc.
  • Interface: oil-water interface, water and sediment in water, bubbles and detergent, etc.
  • Granular: feed, medicine, plastic particles, etc.
  • Mixture: factory waste water, waste water, sewage, rainwater
  • Powder: dust, earth and sand, flour, sugar, rice flour, lime, cement, etc.
  • Block: coal, stone, ores
